OS VectorMap Local in DXF or DWG

Step 1: Select Location
Step 2: Alter Map Area
Step 3: Options & Buy

Your Cart 0 item items in cart.
Total cost: £ 0

Step 1



Enter a Placename e.g. Edinburgh or London. Map will rescale to 50k at that Placename - then click on the map to centre
Enter Easting and Northing e.g. 259590 666000

Product Information

OS VectorMap Local in DXF or DWG
Ordnance Survey 10k Vector DXF DWG

10k Vector data for CAD - Ordnance Survey Vector Map Local derived - not as detailed as the large scale OS Mastermap but this mid scale vector product is ideal for covering larger areas especially in rural locations.

  • buildings
  • roads
  • railways
  • hydrology and land areas.
Pricing ranges from:

£36.23 + vat for 1000m x 1000m

£273.83 + vat for 10km x 10km

Step 2

1000m 10000m
1000m 10000m


Coverage requested: 300m x 180m

Step 3

Select Licence Term:








Cost: £ 0 + vat

OS VectorMap Local in DXF or DWG

Applications of OS VectorMap Local in DXF or DWG

The purpose of OS VectorMap Local data is to support a wide range of customer applications that utilise

geographic information. These may include:

• Agriculture
• Land and estate management
• Urban extents

OS VectorMap Local topographic features codes are representations of real-world objects, including
buildings, roads, railways, rivers and land area.

Whats the difference between this mid scale vector data and large scale vector data?

A large amount of confusion is caused by the terms "large scale", "mid scale" and "small scale". "Large scale" refers to maps on which objects are relatively large, "small scale" to maps on which objects are relatively small.

This is a mid scale product and not as detailed as large scale (OS Mastermap in DXF or DWG) even when enlarged in CAD software. The main differences comparing large scale again this mid scale product are:

• Building are more detailed in large scale
• Roads are more detailed in large scale
• Most pavements are included in large scale
• House numbers are included in large scale

Visual example:
Ordnance Survey Mapping and Data mid scale example

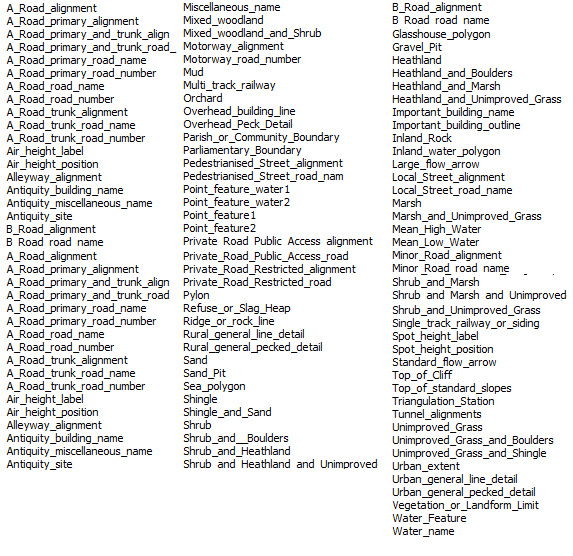

OS VectorMap Local in DXF or DWG layers in CAD

Product Details

Suggested uses

Licence Information

Alternative Products

OS Mastermap
Ordnance Survey Mapping and Data Product

Ordnance Survey Large Scale CAD (layered) data.

OS MasterMap Topography Layer in DXF or DWG with optional contours at 0.5m, 1m or 2m intervals.

OS 10k Vector data for CAD
Ordnance Survey Mapping and Data Product

10k Vector data for CAD or GIS - OS Vector Map Local derived - not as detailed as the large scale OS Mastermap but this mid scale vector product is particularly useful for covering larger areas.

OS 10k Raster Tiles
Ordnance Survey Mapping and Data Product

1:10 000 Scale Raster provides a backdrop map product at a mid-scale on which you can overlay your information, to provide a geographic context for your data. Available in 5km x 5km and in Backdrop Colour (washout), Black and White or Colour.

OS Aerial Photography
Ordnance Survey Mapping and Data Product

OS MasterMap® Imagery Layer yields compelling information that you cannot get from mapping alone, such as road markings, habitats, land use, vegetation, pipes and cables, utilities infrastructure, roof types, and building access. 1km x 1km Tiles suppled with the relevent .tfw and .xml file/s.
